Haver & Boecker Niagara custom-engineers the largest vibrating grizzly screen in the world. Manufactured with Hardox® steel perforated plates and grizzly bars for a large Brazilian iron ore operation, the Niagara XL-Class vibrating grizzly screen has a capacity of 8000 tph and a cut size of 200 mm.
As one of the largest exciter-driven machine in the industry, the XL-Class aims to provide the operation with high-capacity screening while maximising uptime and production. Combined with the grizzly technology, the XL-Class offers the ability to remove large stones, relieving pressure on the primary crusher.

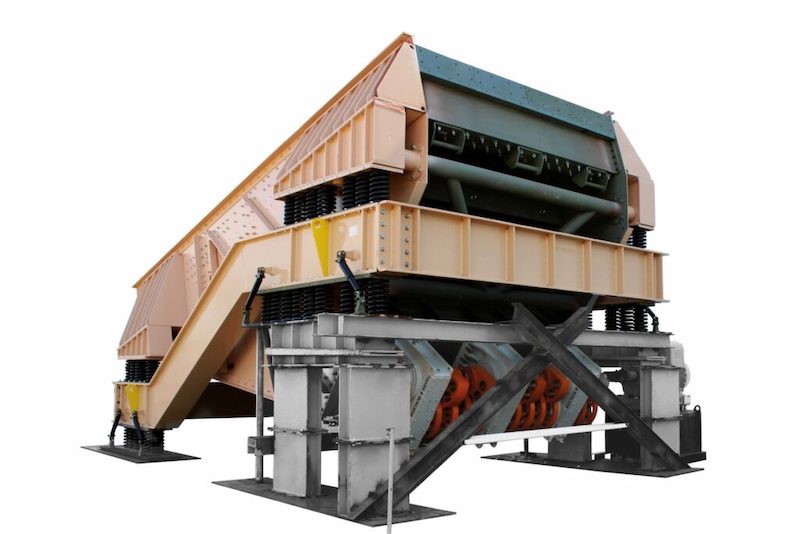

At 120 t, the machine’s size required a modular approach, so Haver & Boecker Niagara engineered the XL-Class vibrating grizzly screen as two bodies. With this customisation, the 1.3 m particles did not allow for the normal placement of exciters, resulting in adjusting the design to place three exciters beneath each body rather than the standard overhead location. Effectively screening material top sizes of 1.3 m, the XL-Class grizzly vibrating screen removed oversized materials to relieve the crusher.
“We recognise that no two operations are the same, which is why Haver & Boecker Niagara takes the time to understand each of our customers and their needs for every new quarry or mine location,” said Denilson Moreno, sales manager at Haver & Boecker Niagara. “We have worked with this customer for many years, but as they began production at what is the largest iron ore operation in the world, we realised to truly maximise output, it would require a durable and extremely efficient primary screen. That’s what led us to engineer and manufacture this XL-Class, which is now the largest vibrating grizzly screen on the market.”
Haver & Boecker Niagara listened to the operation’s challenges and employed their signature NIAflow plant simulation software to address them. The software analysed the proposed plans, processes, goals and material for plant optimisation, providing information to the customer and Haver & Boecker Niagara to design and custom engineer the one-deck vibrating grizzly screen.
“Our goal is not only to provide our customers with top-tier equipment but to act as a true consultant and partner to them,” said Clayton Carvalho, managing director of Haver & Boecker Niagara’s Brazil operation. “With more than 150 years of experience in the mining and aggregates industry, we are proud of the equipment and technology that we can offer as well as the knowledge and expert service we bring to our customers.”
