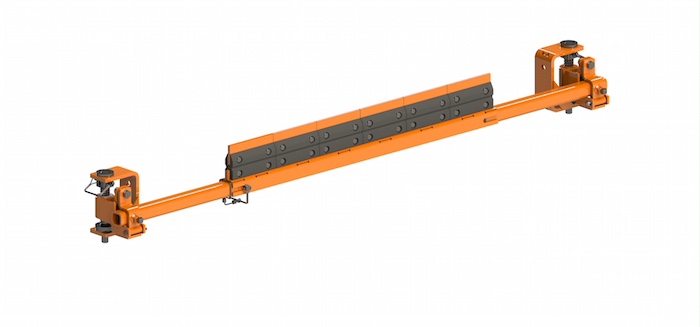

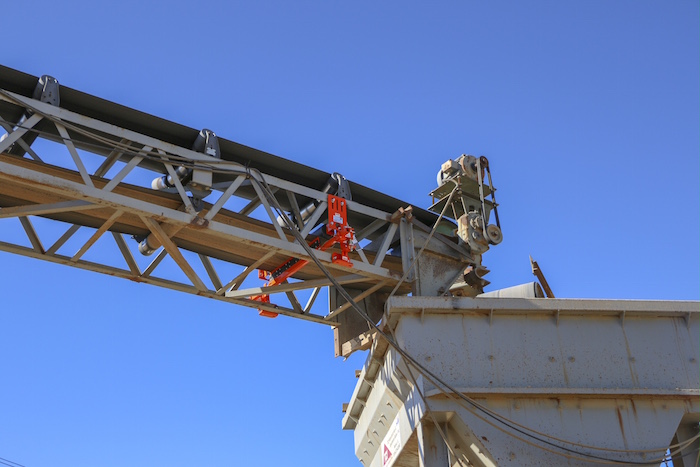

A global leader in conveyor belt cleaning technologies has introduced a new design specifically for applications where space for installation is limited. The new SQC2STM RM (Reduced Mini) Cleaner from Martin Engineering is a compact secondary belt cleaner that allows installation in close quarters, built with a narrow profile that resists material build-up. Patented rubber buffers maintain cleaning pressure on the new design, engineered to deflect and allow splices to pass without damage to the belt or cleaner, even on reversing belts. The rugged construction incorporates individually-cushioned stainless steel blades with tungsten carbide tips for effective cleaning with negligible risk to belt, splice or blade, and it can withstand even punishing operating conditions, including corrosive environments, high-speed belts and high-tonnage loads.
“The blades conform to the belt profile, adjusting individually to deliver continuous contact across the belt,” explained Dave Mueller, Conveyor Products Manager at Martin Engineering. “In a perfect world, bulk materials would load uniformly, wearing the blade evenly, but that rarely happens. By having multiple segments attached to a single rigid assembly, the tension can be maintained and adjusted accurately, quickly and safely.”
Like the other designs in the SQC2 product line, blade removal and replacement is a simple operation by removing the lock pin from the main support assembly and sliding out the cartridge. The lock pins are a key component to Martin Engineering’s “no-reach design,” which allows workers to conduct their lockout / tag-out procedure more safely. The unit is one of Martin Engineering’s Safety First™ family of products, helping customers achieve OSHA compliance.
Suitable for belt widths from 18-72 inches (450-1829 mm) and operating speeds up to 750 fpm (3.81 m/sec), the SQC2S RM blade sections conform to the belt profile by adjusting individually to deliver continuous contact across the entire belt. The unit can be used in applications involving operating temperatures between -30°F and 300°F
(-34°C and 149°C). The design features all steel powder coated construction, (except for the rubber buffer), with . A dust-tight door to cover the opening for the mainframe has also been designed to fit the reduced component size, for a clean, efficient installation.
The SQC2S RM requires just 5.27 inches (134 mm) of space from the tip of the blade to the bottom of the mainframe. Similar to the original design, when the blade wears out, the removable cartridge allows easy replacement, so the end user can have a spare cartridge on the shelf. When the time comes to switch them out, the conveyor is only out of service for a matter of minutes. The used cartridge may then be taken back to the shop, where the blades can be replaced and the cartridge put back on the shelf for the next changeout.
The tensioners allow simple adjustment of blade-to-belt pressure to maintain cleaning efficiency, regardless of blade wear. The SQC2S RM is expected to find utility in applications where installation space is at a premium, including biomass, recycling, waste-to-energy, trash sorting, foundries and steel production.
Martin Engineering is a global innovator in the bulk material handling industry, developing new solutions to common problems and participating in industry organizations to improve safety and productivity. The company’s series of Foundations reference books is an internationally-recognized resource for safety, maintenance and operations training -- with more than 20,000 print copies in circulation around the world. The entire 500+ page volumes can also be downloaded as free PDFs from the Martin web site. Martin employees take an active part in ASME, SME, VDI, CMA and CEMA, and the firm played a pivotal role in writing and producing the 7th edition of the CEMA reference book, Belt Conveyors for Bulk Materials. Martin Engineering products, sales, service and training are available from factory-owned business units in Australia, Brazil, China, Columbia, France, Germany, India, Indonesia, Italy, Mexico, Peru, Russia, Spain, South Africa, Turkey and the UK.
