This system will be supplied to load cement & clinker in Yesilovacik, Turkey. After success with a previous cement & clinker loading chute the customer has selected another Cleveland Cascade Chute for this application.
The Cascade Chute will be designed to load cement & clinker at up to 1,400 tonnes per hour from a Ship Loader System with a luffing boom. The chute will feature a Pivoting head chute to function with the luffing of the boom.
This will be one of Cleveland Cascades' 1300 sized systems with an extended length of 18 metres, capable of retracting to 3.5 metres for storage. The Head Chute will be lined with Chromium Carbide and the GRP cones lined with sintered alumina ceramic tiles for abrasion protection.
The system will feature all of the safety and automation functions such as, material detection & auto raise, downward motion limits, overload protection, position sensing and retraction limit switches all of which will feedback to the customers PLC for integration into the programming. The chute will be controlled by a locally mounted winch for downward motion and retraction.
The chute outlet will be fitted with a skirt for creating a seal on the material pile keeping dust creation to a minimum.

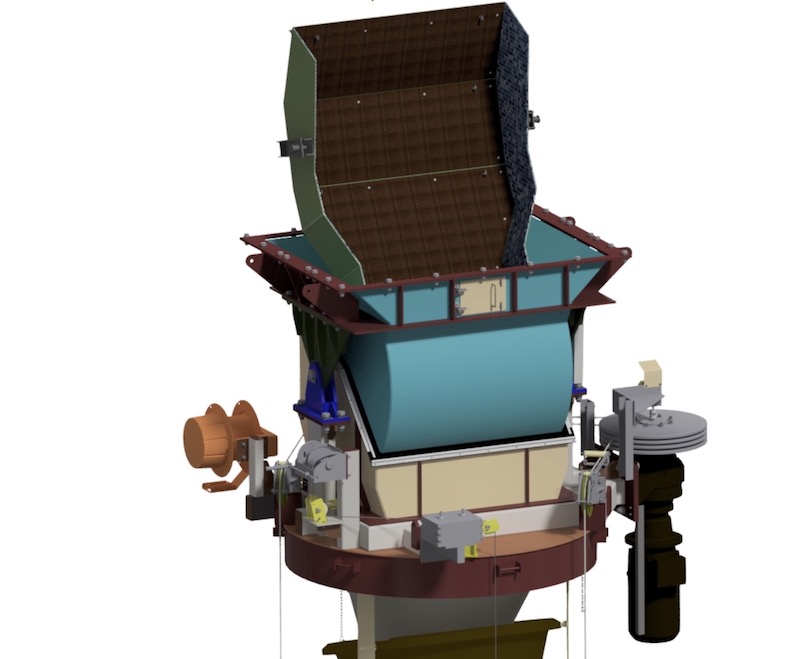

Some images of the system design can be seen below:
