E-Crane® proudly presents a groundbreaking crawler crane concept that combines full machine mobility with uninterrupted logistical flow along the quay. Designed for E-Cranes with an operating weight between 400 and 750 tons, this innovative solution offers unique advantages for bulk terminals where flexibility, efficiency, and infrastructure preservation are key.

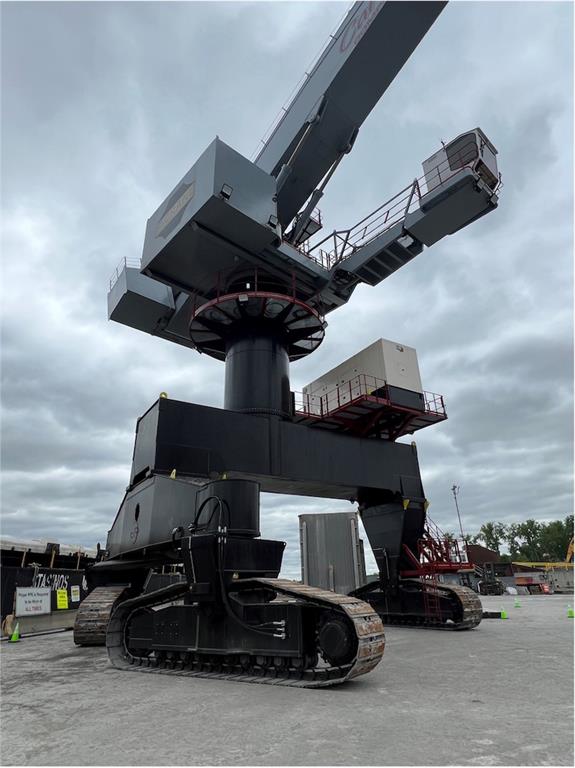

A 600-ton crane on a high portal, equipped with crawlers — offering perfect maneuverability with zero damage to the dock? E-Crane proves it can be done.

Key features of the concept:

  • Stable tripod configuration
  • The crane is mounted on a triangular undercarriage (tripod), with the slewing ring positioned at the center of gravity. This ensures maximum stability and optimal weight distribution during both operation and travel.
  • High portal design with generous clearance
  • The tripod is combined with an elevated portal structure, offering approximately 9 meters of drive-through width and 6 meters of vertical clearance. This allows uninterrupted passage of quay traffic, including trucks, reach stackers, and other mobile equipment.
  • Minimal impact on quay surface
  • Thanks to the steering crawlers — with two out of three tracks capable of pivoting around a vertical axis to determine the driving direction — combined with flat track shoes, maneuvering is smooth and efficient with minimal load and wear on the quay surface.
  • Maximum deployment flexibility across the terminal
  • Due to its exceptional mobility and maneuverability, the crane can be deployed flexibly – not only along the quay, but also in various other areas across the terminal, depending on operational requirements.
  • Pendulum-mounted crawlers for optimal load distribution
  • Each crawler track is mounted on a pendulum suspension system, allowing continuous and automatic adaptation to surface irregularities. This ensures even distribution of ground pressure, even on uneven terrain.
With this new crawler crane concept, E-Crane® responds to the growing demand for heavy-duty, mobile, and quay-friendly crane solutions in the bulk handling industry.

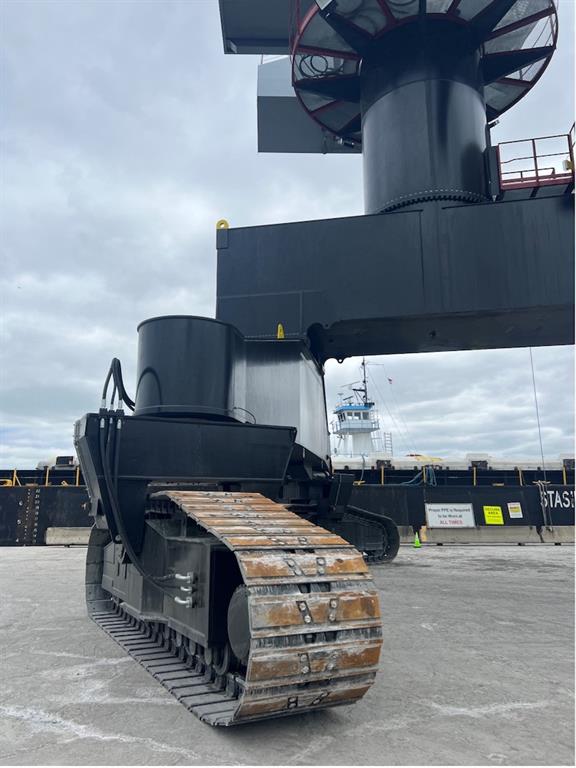

The crawlers are pendulum-mounted to ensure uniform ground pressure under all conditions. Equipped with flat track shoes, the crawlers can pivot around a vertical axis, enabling precise steering.
